Reprograme Bios IC using EEprome Programer

(1)User must select a correct chip modle before writting.

(2)User must erase chip before writting if che chip is a 25 flash.

(3)User must select a correct memory unit width if che chip is a 93 eeprom.

(4)The chip maybe bad.

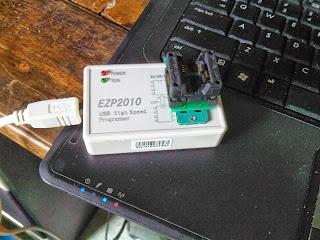

(1)If the programmer is linked to PC, the chip must be placed in the socket as below:

See the section “detect chip” in this document.

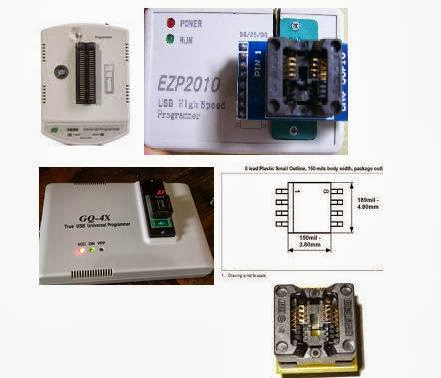

The simple SMD socket has tow chip positions.

User can place SMD chip on any one of the tow position.

White spot mark as pin 1 on chip



User can link programmer to mainboard to read and write bios chips.

User can link GND, CS, MISO, MOSI, CLK signals to mainboard.

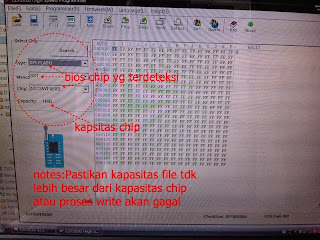

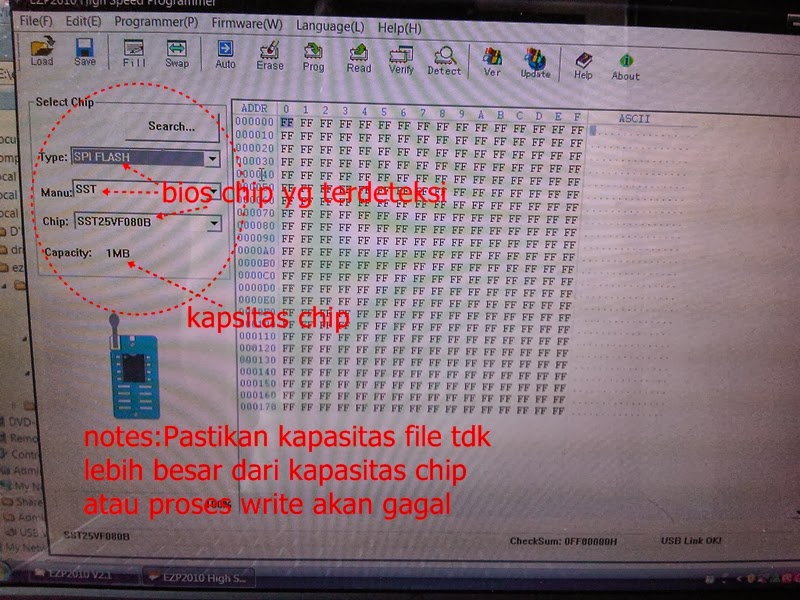

6.Detect chip ~Read~Erase~Reprogram~verify
